Structural stress analysis of storage tank Z480.5


Project Description

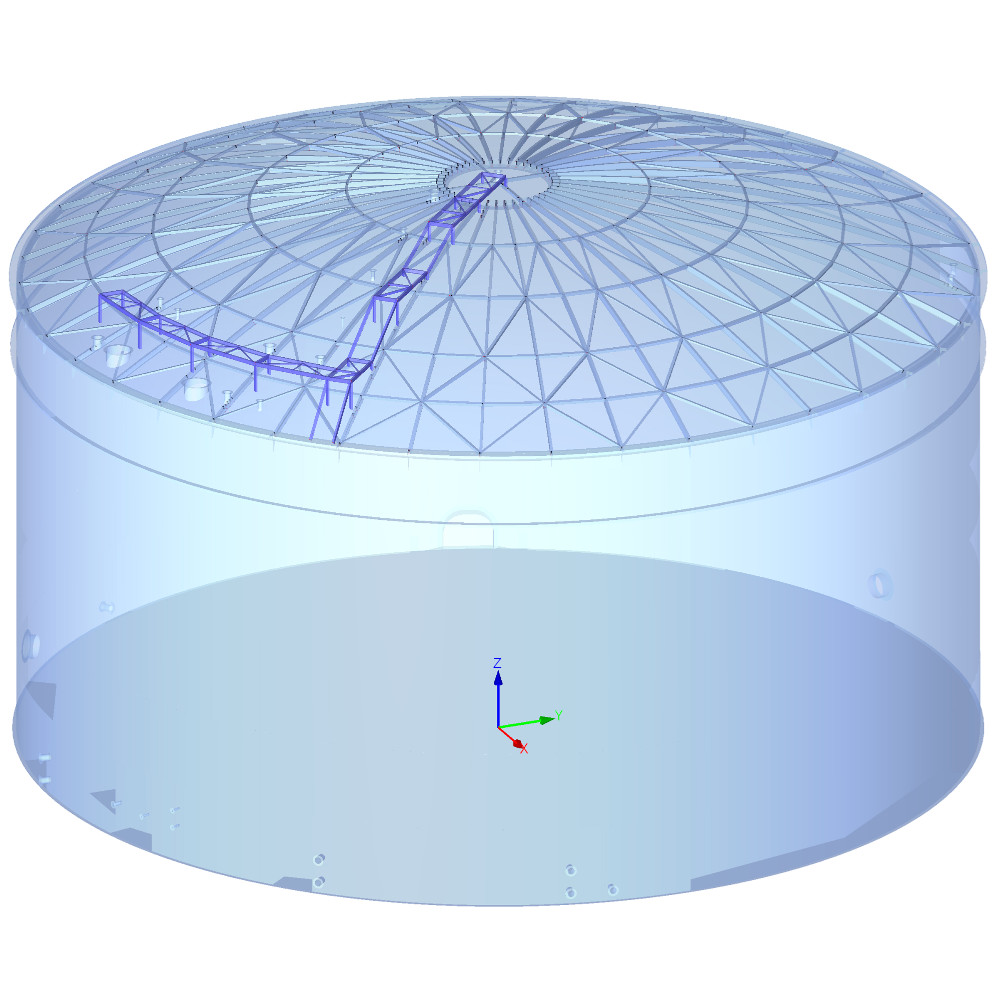

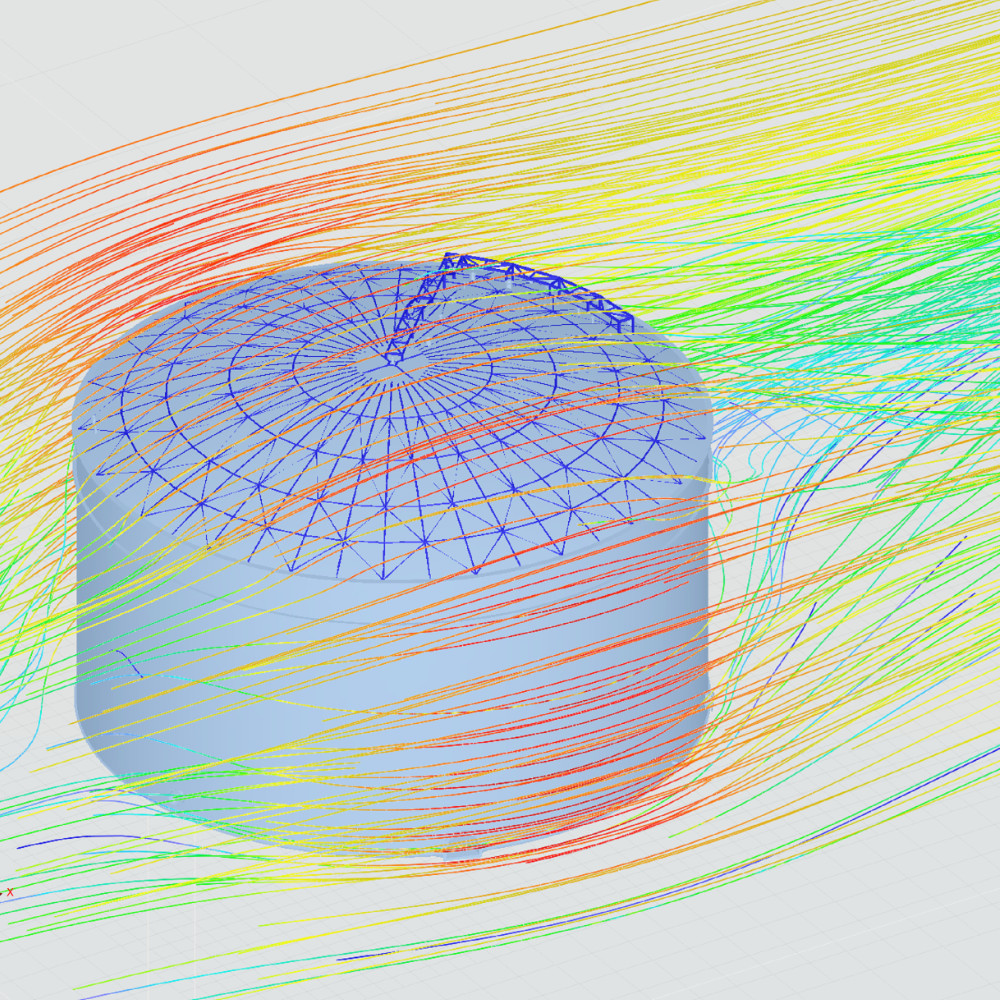

Structural stress analysis of storage tank Z480.5 at DEZA Company. It is aboveground storage tank with flat bottom and dome fixed roof. Operating medium are OSS or FAO with temperature 75°C (normal) to 90°C (maximal). Operating pressure +17 / -7mbar. Numerical analyses of the structure were made using the RFEM and RWIND programme, which is based on the FEM respectively CFD methods.

  • Client

    Technomont Frýdek-Místek s.r.o., Czech Republic

  • Year

    2022
