Structural stress analysis of storage tank Z360.3 with heating coil


Project Description

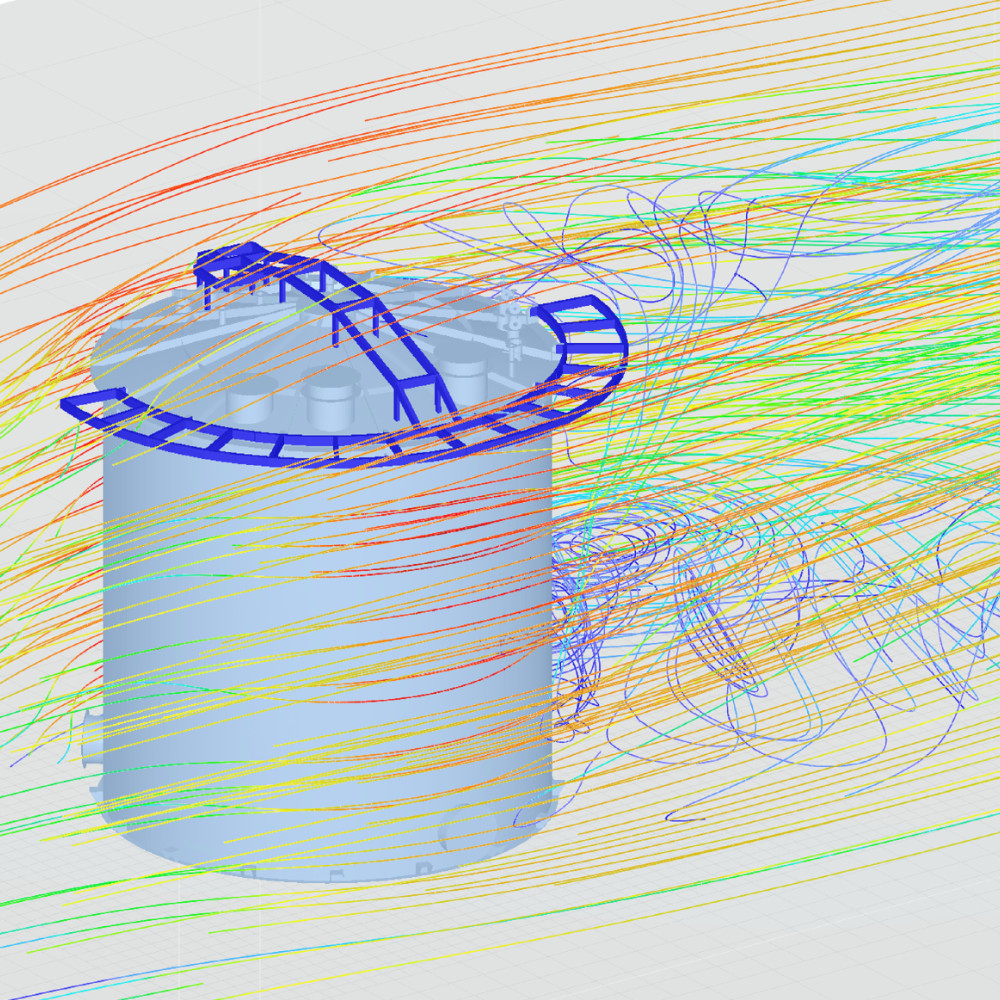

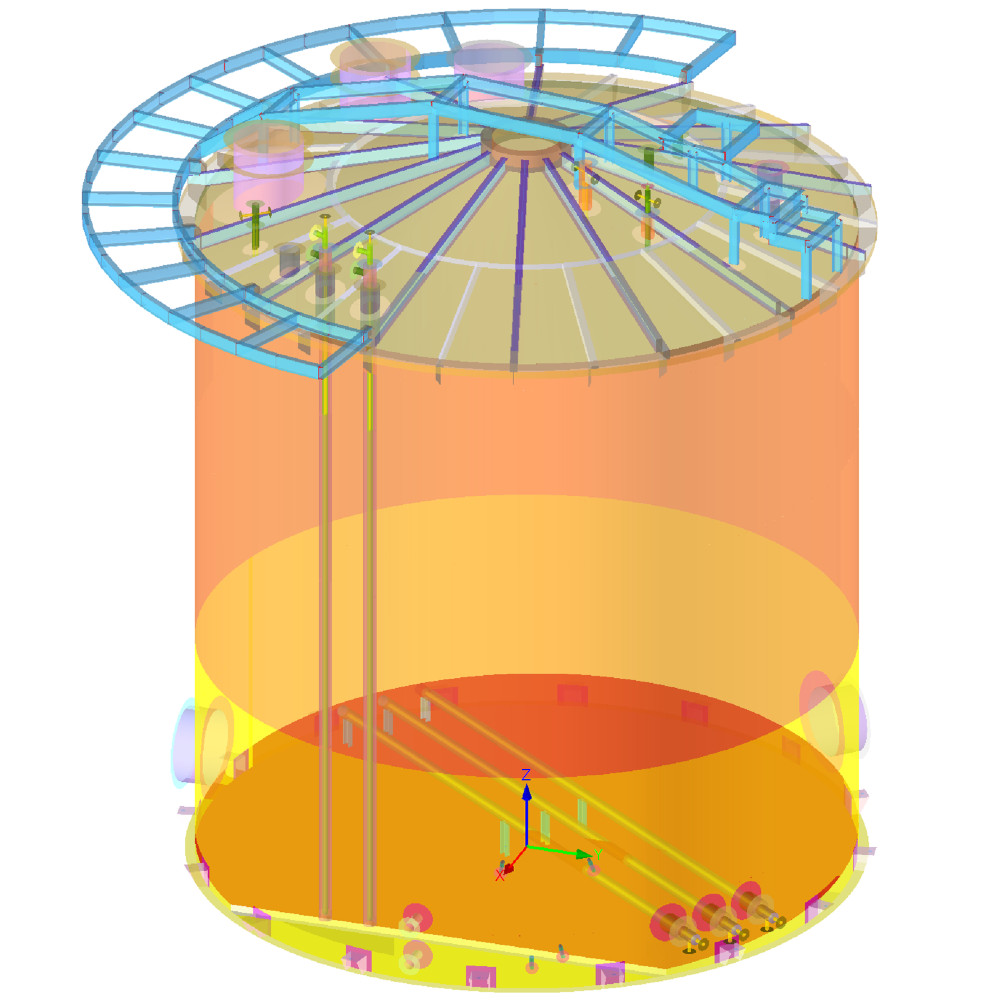

Structural stress analysis of storage tank Z360.3 with heating coil at DEZA Company. It is aboveground storage tank with flat bottom and conical fixed roof. Plate material is P265GH. Structural stress analysis of storage tank was made according to EN 14015 and propriate Eurocode standards - EN 1993-1-6, EN 1991-1-4, EN 1991-1-3, EN 1993-1-1, EN 1990. Structural stress analysis of heating coil and double wall of nozzles was made according to EN 13445-3. Numerical analyses of the structure were made using the RFEM and RWIND programme, which is based on the FEM respectively CFD methods.

  • Client

    František Polívka TPS MONTÁŽE, Czech Republic

  • Year

    2021
