Structural stress and stability analysis of distillation column C545.1


Project Description

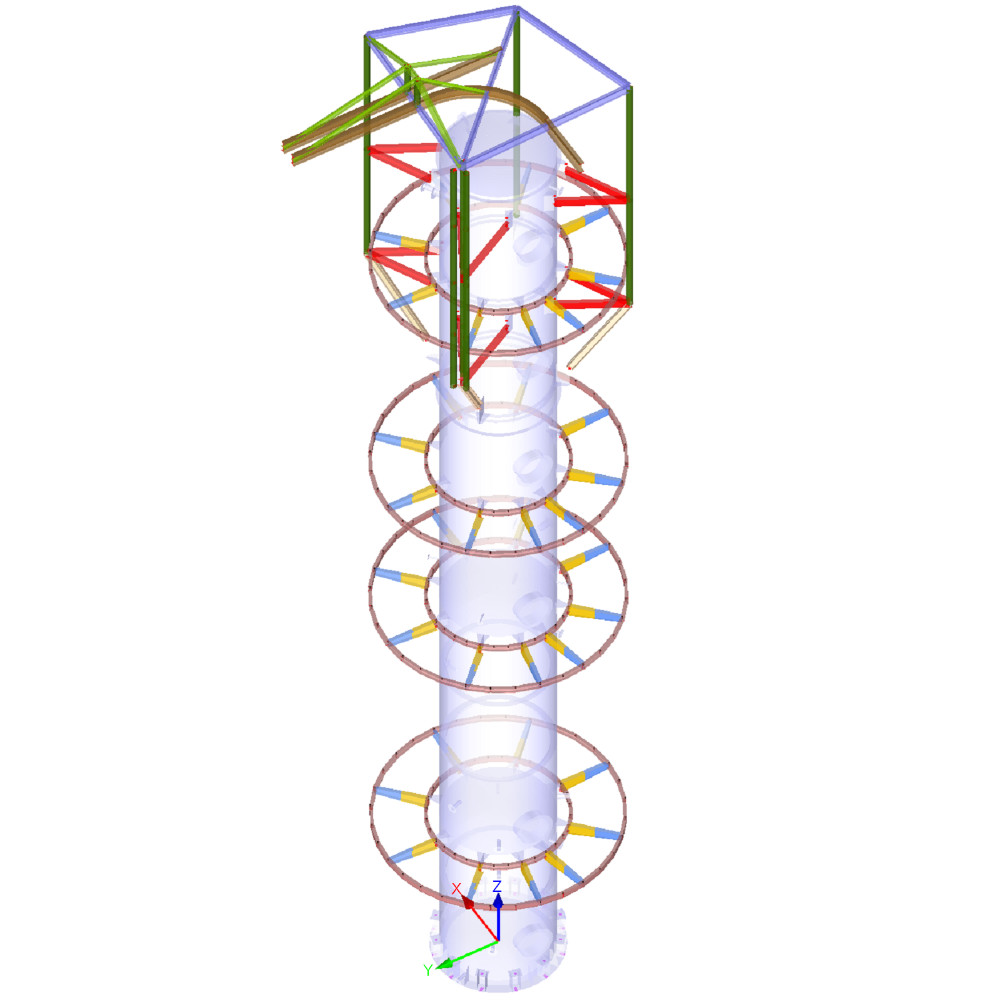

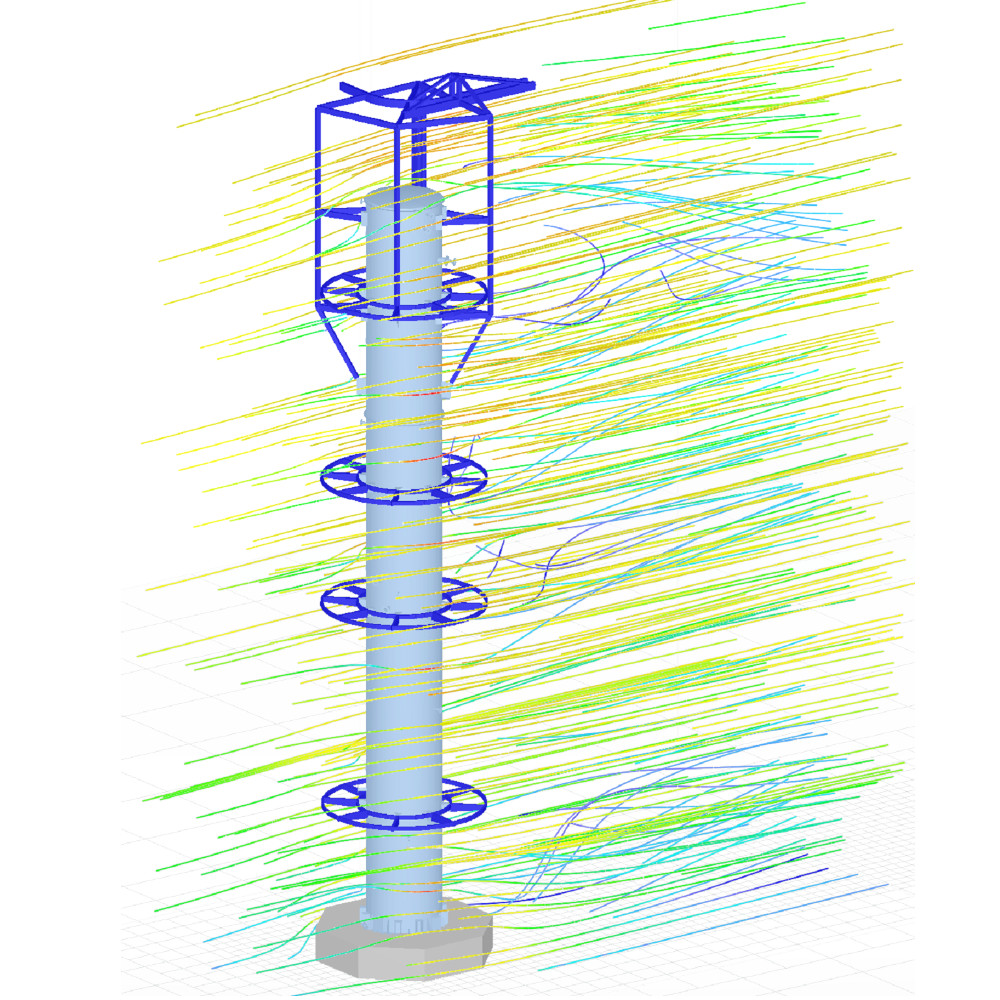

Structural stress and stability analysis of distillation column C545.1 at DEZA Company. It was project of replacement of distillation column which is now made from stainless steel material 1.4541. This column is created by three parts – washer, separator and water storage unit. Structural stress and stability analyses was made according to EN 13445-3 standard and propriate Eurocode standards - EN 1993-1-6, EN 1991-1-4, EN 1991-1-3, EN 1993-1-1, EN 1990. Numerical analyses of the structure were made using the RFEM and RWIND programme, which is based on the FEM respectively CFD methods.

  • Klient

    CENTROPROJEKT GROUP a.s., Czech Republic

  • Year

    2021
