Structural stress analysis of chimney and inlet duct


Project Description

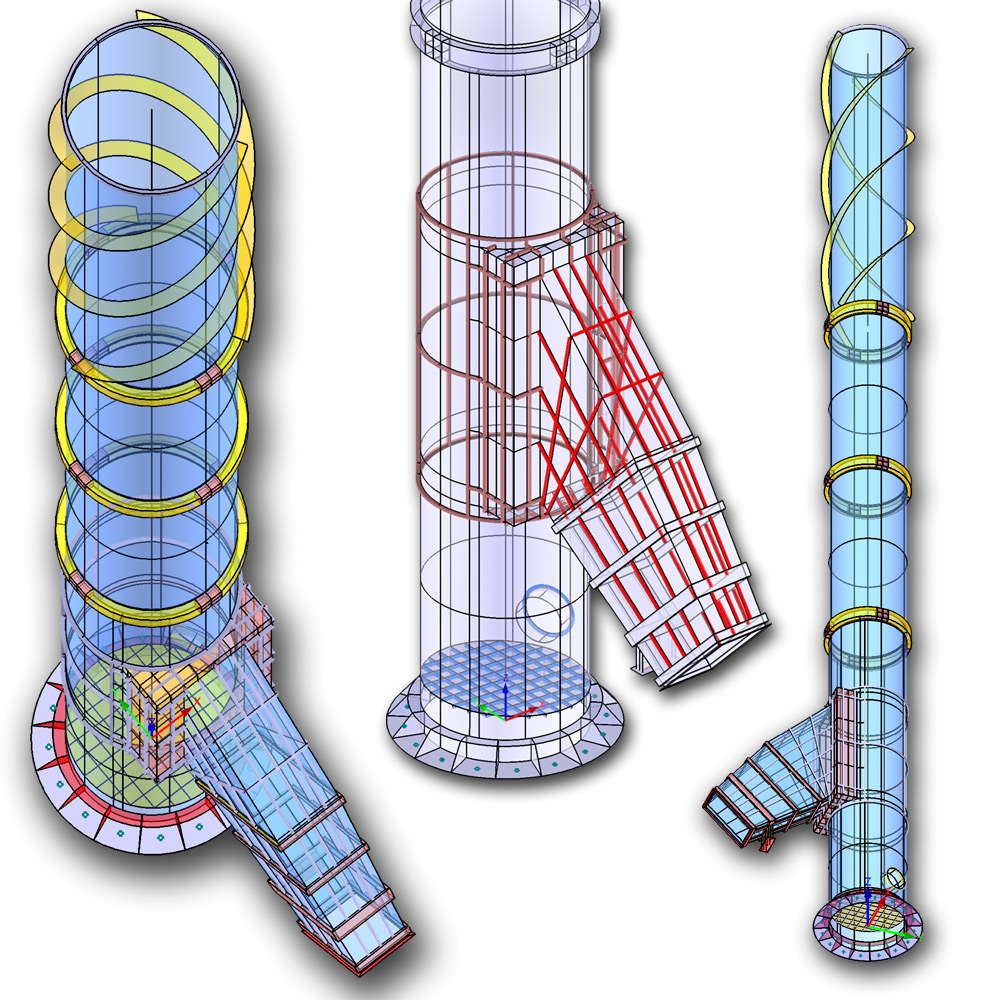

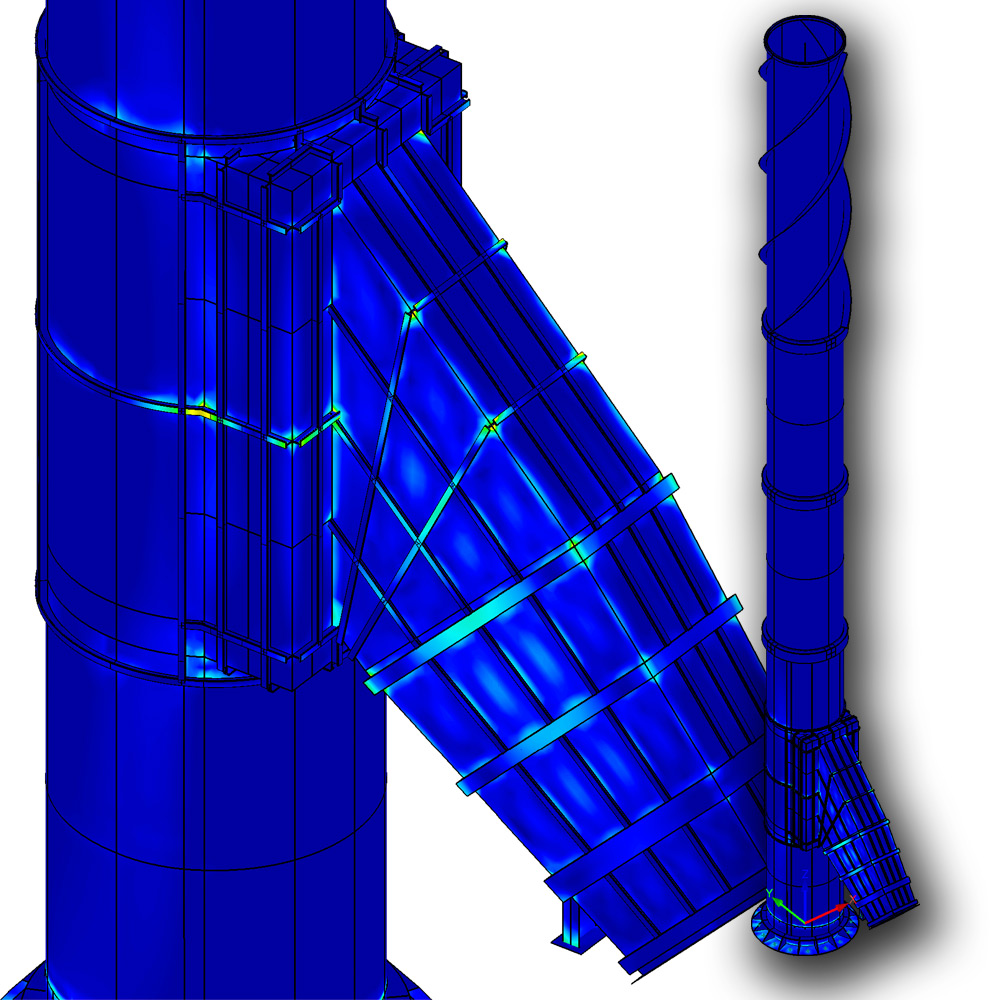

Structural stress analysis of chimney and inlet duct. The chimney is designed as longitudinal supported at three points. Due to requirement of the investor wind bands at the top of the chimney have also been designed. The construction material of the chimney and inlet duct is stainless steel 316L. This structure is a part of a project of the granulating product line in Novomoskovsk. Numerical analysis of the duct was made with usage of RFEM programme, which is based on the finite element method.

  • Client

    REN Engineering, s.r.o. (General contractor: POLATA s.r.o.) - Czech Republic

  • Year

    2017
